BASIC INFO

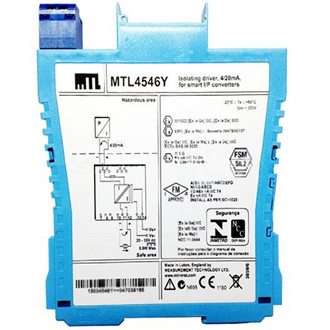

MTL4546Y Safety Barrier Isolating Driver 4/20mA for Smart I/P Converters

Trade information of MTL4546Y Safety Barrier Isolating Driver 4/20mA for Smart I/P Converters

Order code:MTL4546Y
Type:Isolating driver
Description:4/20mA current/pressure converter driver
Brand:MTL
Serie:IS Isolator 4500 series
Minimum quantity:1
Offset:1

Specifications

In- and outputs: Analog output Input from unsafe area: Flap Mounting method:PCB fastening Number of channels1

Manufacturer : MTL Instruments

Device : MTL4546Y

Analogue Output - controller outputs, I/P converters

Backplane mounting devices

No. of channels : 1

Output to hazardous area : 1mA <Io<26mA, Vmax = 16V

Important features : Suitable for HART valve positioners, OC LFD

Shipping Weight : 1 Kg

Description of MTL4546Y Safety Barrier Isolating Driver 4/20mA for Smart I/P Converters

IS Isolators, 4500 & 5500 series. Galvanic isolation solutions with low power dissipation and quick install and release mechanism. Most Isolators are multichannnel and have broken line monitoring.

The backplane mounting range MTL4500 is designed with systme vendors in mind for project focussed applications. A Multiway connector to the backplane provides safe-area and power supply connections, while hazardous-area connections plug into the front of the module, simplifying installation and maintenance

The DIN rail mounting MTL 5500 range meets the needs of the IS interface market for application focussed projects. The 5500 clips quickly onto a DIN rail, so it is compatible with the industry- standard mounting system. Wiring is simplified by plug in safe- and hazardous area connectors, and a power plug which accepts a power bus.

Line fault detection facilities are provided accross the range. In addition status LEDs and configuration switches are located on the top or side of the indvidual modules.

MTL4546Y Safety Barrier Isolating Driver 4/20mA for Smart I/P Converters

MTL4546 1ch 4-20mA smart isolating driver + LFD

MTL4546C 1ch 4-20mA smart isolating driver + oc LFD

MTL4546S 1ch 4-20mA HART isolating driver + LFD

MTL4546Y 1ch 4-20mA smart isolating driver + oc LFD

MTL4549 2ch 4-20mA smart isolating driver + LFD

MTL4549C 2ch 4-20mA smart isolating driver + oc LFD

MTL4549Y 2ch 4-20mA smart isolating driver + oc LFD

MTL Intrinsic Safety Zener Barriers

MTL4546Y Safety Barrier Isolating Driver 4/20mA for Smart I/P Converters

MTL is a pioneer in the development of the "shunt diode" safety barrier. This is a passive network device that uses Zener diodes, resistors and fuses to safely divert excess electrical energy to ground and thus prevent sparking in or overheating of equipment in hazardous areas. Their key benefits are low cost and the ability to operate with data in analogue DC or high-speed digital forms.

MTL became a world leader with its ranges of shunt diode safety barriers and its support role in the emergence of this new technology.The early MTL700 Series soon established itself as an 'industry standard' with a reputation for quality and reliability.

The ranges have evolved over the years but the latest MTL7700 Series is unique in providing a broad range of benefits that the instrumentation engineer looks for in a modern barrier.

MTL4546Y Safety Barrier Isolating Driver 4/20mA for Smart I/P Converters

With the new MTL7700, and continuing support for our other ranges, MTL's commitment to zener barriers is confirmed for many years to come.

MTL Isolators

MTL offers the best choice in DIN-rail and backplane mounting isolators to meet the requirements of modern systems.The DIN-rail mounting isolator ranges provide a wide choice of functions with high accuracy and reliability, while the backplane mounting products are established as the leading IS system interface with solutions for all the major DCS companies.

The NEW MTL4500 Series is the latest generation of backplane mounting products, building upon the heritage of MTL4000 and introducing many key application benefits.

The NEW MTL5500 Series launches a new industry standard for DIN rail mounting products, ideally suited to a wide variety of interface tasks for process instrumentation.

Part Number & Description of MTL4546Y Safety Barrier Isolating Driver 4/20mA for Smart I/P Converters

Digital Input

MTL4501-SR     1ch DI failsafe solid-state output + LFD alarm
MTL4504          1ch DI relay output + LFD alarm + phase reversal
MTL4510          4ch DI solid-state output
MTL4510B        4ch DI multifunction solid-state output
MTL4511          1ch DI relay output
MTL4513          2ch DI solid-state output
MTL4514/B       1ch DI relay output + LFD alarm
MTL4516          2ch DI relay output
MTL4516C        2ch DI with changeover relay output
MTL4517          2ch DI relay output + LFD alarm

Digital Output

MTL4521          Loop powered solenoid driver
MTL4521L         Loop powered solenoid driver IIC
MTL4523          Solenoid driver with LFD
MTL4523L         Loop powered solenoid driver + LFD
MTL4523R         Solenoid driver with LFD
MTL4523V/VL    Solenoid/Alarm driver with voltage control
MTL4524           Switch operated solenoid driver
MTL4524S         Switch operated solenoid driver, 24V override
MTL4525           Switch operated solenoid driver low power
MTL4526           2ch switch operated relay

Analogue Input of MTL4546Y Safety Barrier Isolating Driver 4/20mA for Smart I/P Converters

MTL4541           1ch 2/3 wire Transmitter repeater
MTL4541A         1ch Transmitter repeater, passive input
MTL4541AS       1ch Transmitter repeater, passive input, current sink
MTL4541B          MTL4041B replacement
MTL4541P          MTL4041P replacement
MTL4541S          1ch 2/3 wire Transmitter repeater, current sink
MTL4544            2ch 2/3 wire Transmitter repeater
MTL4544A          2ch Transmitter repeater, passive input
MTL4544AS        2ch Transmitter repeater, passive input, current sink
MTL4544B          MTL4044 replacement
MTL4544D          2/3 wire transmitter repeater, dual output
MTL4544S          2ch 2/3 transmitter repeater, current sink

Analogue Output
MTL4546            1ch 4-20mA smart isolating driver + LFD
MTL4546C          1ch 4-20mA smart isolating driver + oc LFD
MTL4546Y          1ch 4-20mA smart isolating driver + oc LFD
MTL4549            2ch 4-20mA smart isolating driver + LFD
MTL4549C          2ch 4-20mA smart isolating driver + oc LFD
MTL4549Y          2ch 4-20mA smart isolating driver + oc LFD

Temperature Input
MTL4575            1ch Temperature converter with alarm
MTL4576-RTD     2ch Temperature converter, RTD
MTL4576-THC     2ch Temperature converter, THC
MTL4581            1ch mV/THC isolator for low-level signals

Pulse and Vibration
MTL4531            1ch vibration probe interface
MTL4532            1ch pulse isolator, digital or analogue output
MTL4533            2ch vibration probe interface
Fire and Smoke
MTL4561            2ch loop-powered, for fire and smoke detectors

General
MTL4599             Dummy isolator
MTL4599N           General purpose feed-through module

MTL4546Y Safety Barrier Isolating Driver 4/20mA for Smart I/P Converters
